ATO-0045

Sold out
£166.66

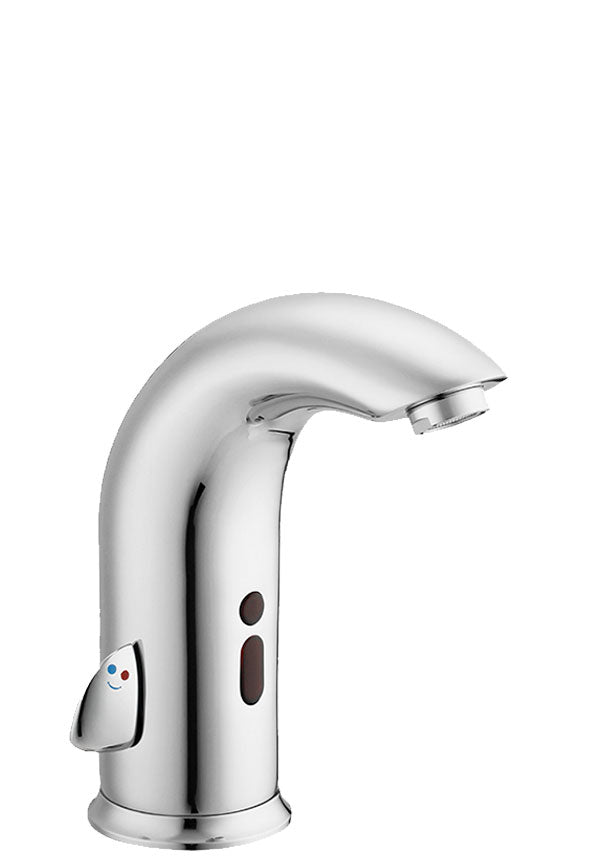

ATO-0045 with manual override button and temperature control lever

Features:
Front-facing dual infrared sensor eyes (ON and OFF)
Manual elcetronic override button *One touch to start, one touch to stop water.
Solid construction 'curve-neck' design sensor tap
Double supply (Hot and Cold supplies)
Temperature control lever
Mains/4XAA Alkaline batteries (2-Year lifespan)
Hands free infrared activation
Exquisite curve-style design
Solid brass construction
Finish: Chrome-plated
Flexible supply hoses supplied

Technical Details:
Diameter of 'hot' connecting hose: G1/2”
Diameter of 'cold' connecting hose: G1/2”
Water pressure range: 0.7 (Min) - 7 Bar (Max)
Voltage: DC6V or AC220V-240V (6V Output)
Power consumption: =0.3MW
Sensing distance: 10-31cm
Respond time: 1 Second
Battery Consumption (DC): 4xAA alkaline batteries (2 years lifespan depending on level of usage)
Silent Consumption: 0.003W
Environment Temperature: 1-45 C
Flow Rate: 5.7L/Per minute
Pipe Threading: British Standard Whitworth (BSW)

Contents:
1x Sensor Tap
4x AA Alkaline Batteries (Subject to availability)
2x Flexible G1/2" *600mm 'hot & cold' Connection Hoses
1x Transformer
1x Battery box
Fittings and Screws

Special Notes:
This sensor tap has a water temperature control lever on the side.

Water pressure:
Water pressure range: 0.7 (Min) - 7 Bar (Max) (1 bar or above for best performance)

AC+DC Power:
This sensor tap can be powered by either Mains or battery or both (This means that in case of a power cut, it will automatically switch to battery)
This sensor tap has a separate 'plug-in' transformer and separate battery box. This sensor tap comes with double (hot and cold) water supply feeds

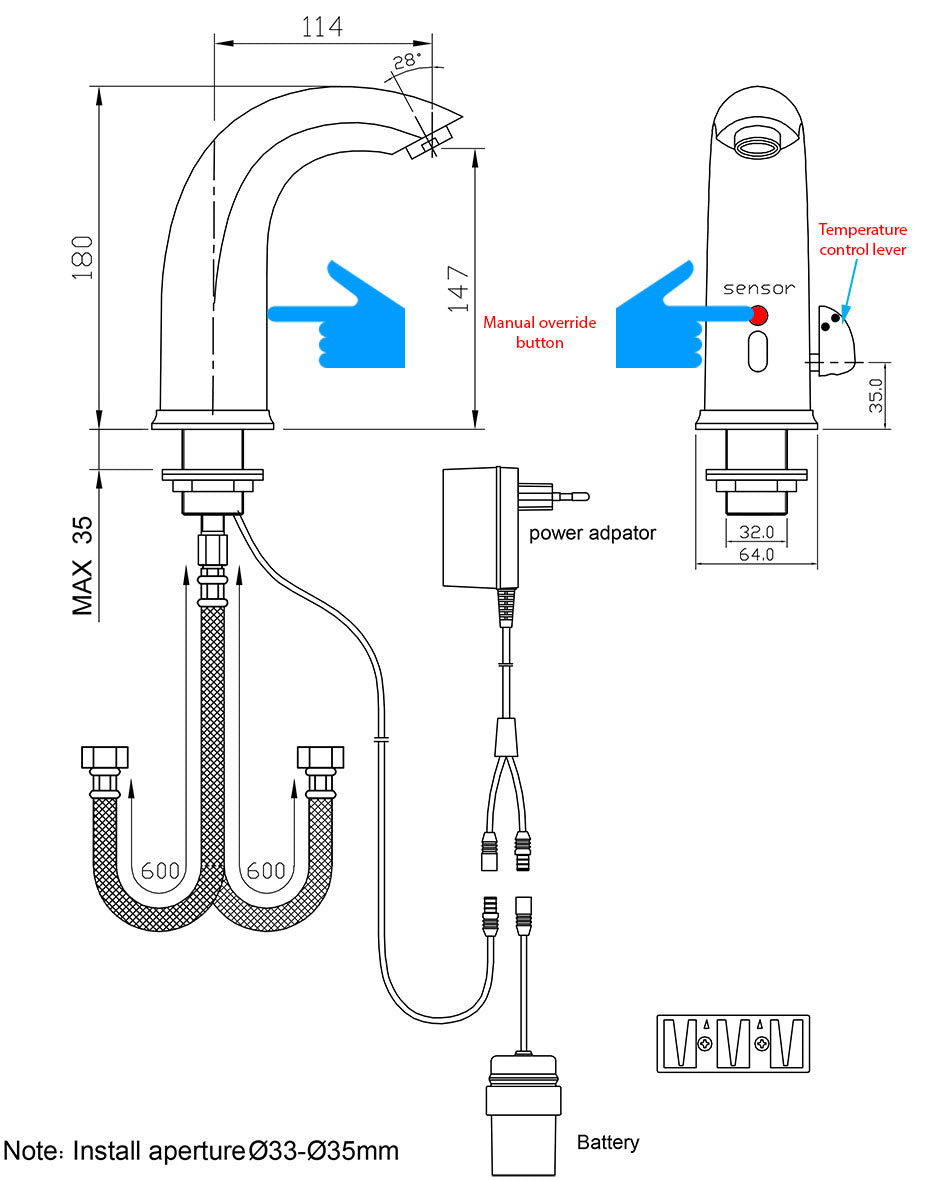

Drilling a hole?
Standard 35mm hole is fine

LIMITED WARRANTY
Autotaps Limited warrants its products (Electronic Sensor Taps) to be made of first class materials, free from defects of material or workmanship under normal use and to perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of three years from date of purchase.

During this period, Autotaps Limited will, at its option, repair or replace any part or parts which prove to be thus defective if returned to Autotaps Limited, at customer’s cost, and this shall be the sole remedy available under this warranty. No claims will be allowed for labour, transportation or other incidental costs. This warranty extends only to persons or organizations who purchased Autotaps products directly from Autotaps Limited. This warranty does not cover the life of the batteries.
