AKT-6102

£199.99

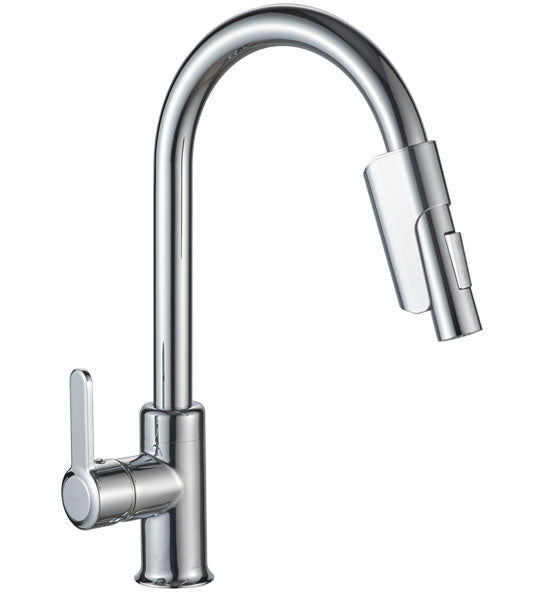

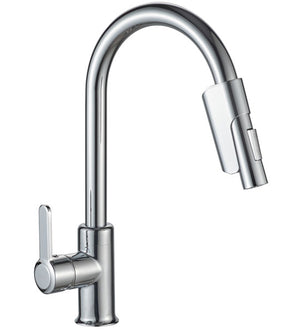

2-in-1 automatic kitchen tap with infrared 'no-touch' sensor and manual ON/OFF control

Features:
Swan-neck design

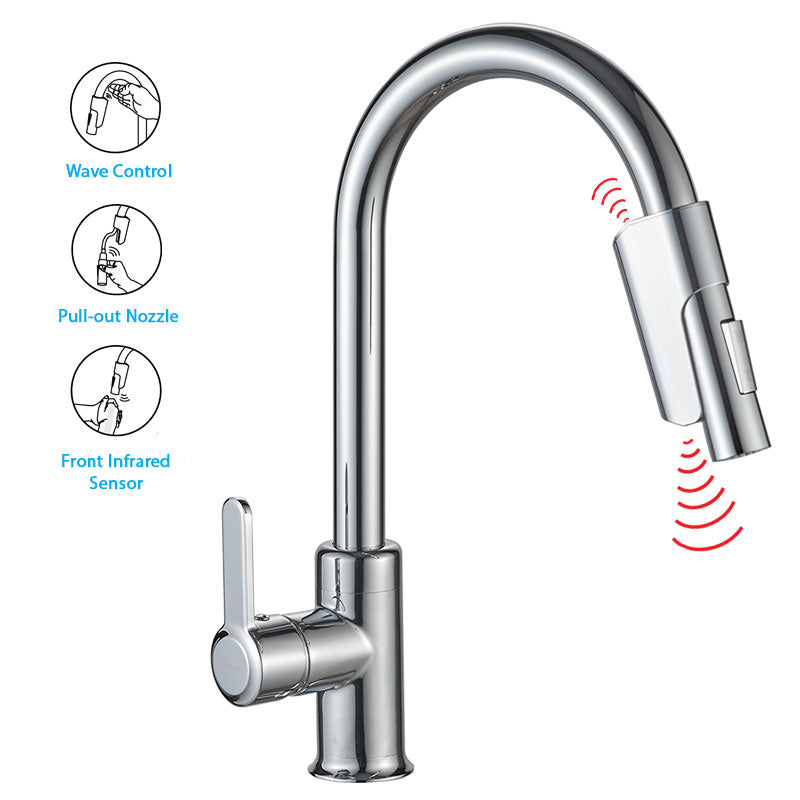

Infrared 'no touch' Wave Control Function
Manual ON/OFF control lever
Swivel-neck design sensor tap
2-in-1 Integrative Dual activation design
Automatic or Manual water control system
Chrome-plated Steel Finish
Double water supply feeds (Hot and Cold)
Power Options: 4x AA Alkaline (batteries only)
Pull-out Spout Design
Hands-free Infrared 'No-touch' Activation
Solid-brass outer-shell construction
Finish: Chrome-plated
2x Flexible supply hoses

Technical Details:
Dia. of Water Inlet Pipe: G1/2" (DN15)
Water pressure range: 0.7 (Min) - 8 Bar (Max)
Flow Rate of Manual Mode: 6L/Min (fitted with flow regulator aerator)
Flow Rate of Automatic Mode: 6L/Min (fitted with flow regulator aerator)
Max. Hot-water Temperature: 70C
Power consumption: =0.3mW
Respond time: 1 Second
Battery Power Consumption: 4xAA alkaline batteries
Silent Consumption: 0.003mW
Environment Temperature: 1-45 C
Pipe Threading: British Standard Whitworth (BSW)
Noise Class: 1
Finish: Chrome-plated
Voltage: DC6V only

Contents:
1x Sensor Kitchen Tap
1x Control Box
1x Battery Box
1x Battery Wall Bracket
2x Flexible G1/2" *500mm Connection Hoses
2x Non-return Valves With Pre-filter
Plastic Tap Fittings
Fittings and Screws

Gravity-fed water supply users:
You'll need at least 0.75 bar of equal pressure from both hot and cold supply in order for this tap to work properly. A pressure pump/booster can be used to increase the water pressure. In summary, the pressure of 'hot' and 'cold' supply feeds must be equal for the temperature control to work efficiently.

Water Flow Differential: Manual & Automatic Mode
When tap is operated manually, the flow of water will be considerably greater than the flow of water dispensed in automatic mode. There's approximately 30% less water dispensed in automatic mode, this is because water flow in manual mode is fed to the user directly from main supplies, whilst the water flow in automatic mode is fed through a separate water channel controlled by a solenoid valve.
Power Options
DC = Direct Current (Battery source)

DC only: The tap can run off batteries only (4 x AA batteries)
We recommend using alkaline batteries, which should be new and of the same brand.

TIP:
It's entirely up to you to decide which power option/combination suits your installation/usage the best.
The integrity of the tap stays the same.

Note:
This sensor tap can be powered by Batteries (DC) only
This sensor tap comes with double water supply feeds

Drilling a hole?
Standard 35-38mm hole is fine

LIMITED WARRANTY
Autotaps Limited warrants its products (Electronic Sensor Taps) to be made of first class materials, free from defects of material or workmanship under normal use and to perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of three years from date of purchase.

During this period, Autotaps Limited will, at its option, repair or replace any part or parts which prove to be thus defective if returned to Autotaps Limited, at customer’s cost, and this shall be the sole remedy available under this warranty. No claims will be allowed for labour, transportation or other incidental costs. This warranty extends only to persons or organizations who purchased Autotaps products directly from Autotaps Limited. This warranty does not cover the life of the batteries.
