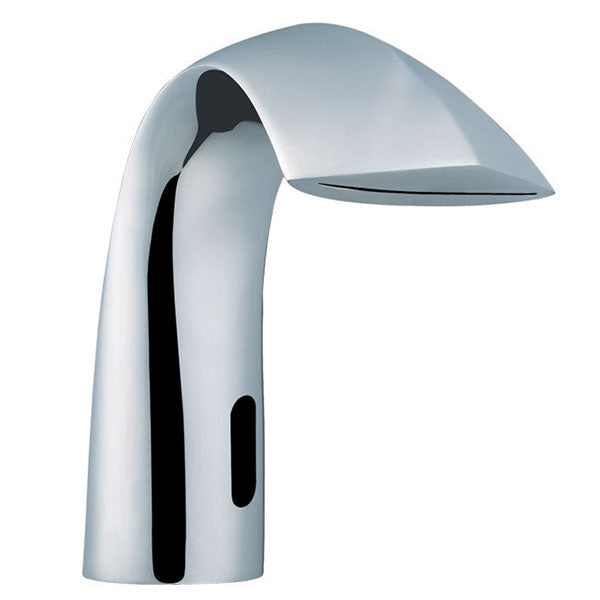

ROS-0027 sensor automatic tap with stylish curve-neck design
Features:
Ralph O'Wallaby Designer sensor tap
Stylish Goose-neck design
Solid brass construction design
Unique waterfall effect
Single supply
Mains/4XAA Alkaline batteries *subject to availability (2-Year lifespan)
Hands free infrared activation
Flexible supply hose

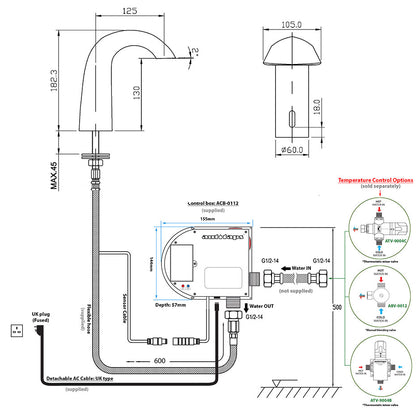

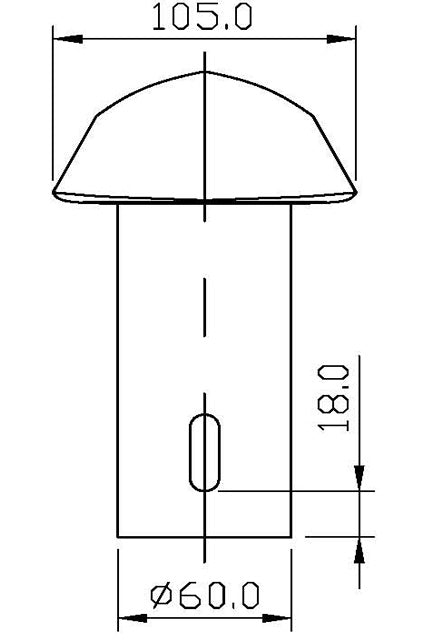

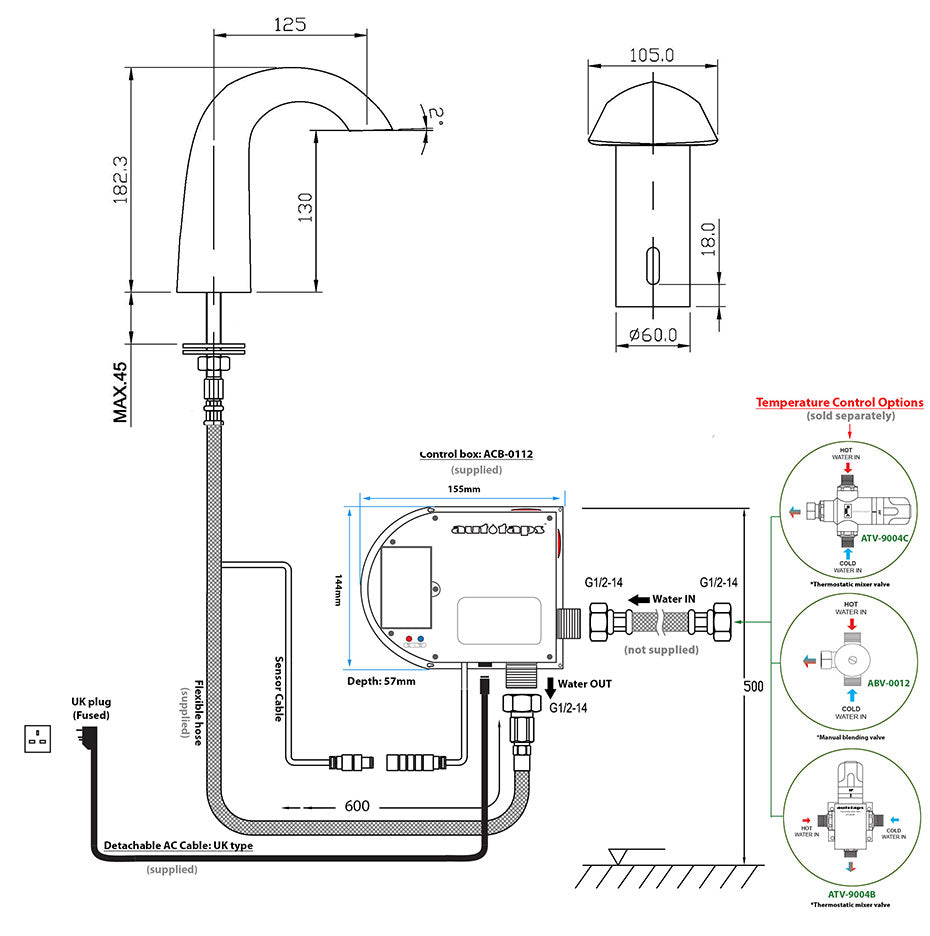

Technical Details:
Diameter of 'inlet' pipe: G1/2”
Diameter of 'outlet' pipe: G1/2”
Water pressure range: 0.7 (Min) - 8 Bar (Max)
Voltage: DC6V or AC220V-240V (6V Output)
Power consumption: =0.3MW
Sensing distance: 10-31cm
Respond time: 1 Second
Battery Consumption (DC): 4xAA alkaline batteries (2 years lifespan depending on level of usage)
Silent Consumption: 0.003W
Environment Temperature: 1-45 C
Flow Rate: 4L/Per minute
Pipe Threading: British Standard Whitworth (BSW)
Contents:
1x Sensor Tap
1x Control Box (*battery compartment inside)
4x AA Alkaline Batteries (*Subject to availability)
1x Flexible G1/2" *600mm Connection Hose
1x Transformer
Fittings and Screws
Special Notes:
Temperature control:
This sensor tap is designed to be supplied with cold or pre-mixed water.
Consideration should be given to safe hot water delivery and the use of an appropriate temperature reduction device.
Manual blending valve:
ABV-0012
Water temperature is controlled manually by hand.
Thermostatic mixer valves:
ATV-9004B
ATV-9004C
Water temperature is regulated automatically
Frequently asked question:
Question:
What's difference between 'ATV-9004B' and 'ATV-9004C'?
Answer:
They're literally both the same thing, except for only one difference.
ATV-9004B has a 'wall-mounting' brackets attached to it, while ATV-9004C has a 'female' connection end, which can be connected directly to a control box 'inlet'.
Consideration should be given to safe hot water delivery and the use of an appropriate temperature reduction device.
Manual blending valve:
ABV-0012
Water temperature is controlled manually by hand.
Thermostatic mixer valves:
ATV-9004B
ATV-9004C
Water temperature is regulated automatically
Frequently asked question:
Question:
What's difference between 'ATV-9004B' and 'ATV-9004C'?
Answer:
They're literally both the same thing, except for only one difference.
ATV-9004B has a 'wall-mounting' brackets attached to it, while ATV-9004C has a 'female' connection end, which can be connected directly to a control box 'inlet'.
Water pressure:
Water pressure range: 0.7 (Min) - 8 Bar (Max) (1 bar or above for best performance)
AC+DC Power: This sensor tap can be powered by either Mains or battery or both (This means that in case of a power cut, it will automatically switch to battery)
The control box for this sensor tap has a separate transformer with an exposed positive & negaitive cable
This sensor tap comes with a single water supply feed
Drilling a hole?
Standard 30mm hole is fine
LIMITED WARRANTY
Autotaps Limited warrants its products (Electronic Sensor Taps) to be made of first class materials, free from defects of material or workmanship under normal use and to perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of three years from date of purchase.
During this period, Autotaps Limited will, at its option, repair or replace any part or parts which prove to be thus defective if returned to Autotaps Limited, at customer’s cost, and this shall be the sole remedy available under this warranty. No claims will be allowed for labour, transportation or other incidental costs. This warranty extends only to persons or organizations who purchased Autotaps products directly from Autotaps Limited. This warranty does not cover the life of the batteries.
Standard 30mm hole is fine
LIMITED WARRANTY
Autotaps Limited warrants its products (Electronic Sensor Taps) to be made of first class materials, free from defects of material or workmanship under normal use and to perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of three years from date of purchase.
During this period, Autotaps Limited will, at its option, repair or replace any part or parts which prove to be thus defective if returned to Autotaps Limited, at customer’s cost, and this shall be the sole remedy available under this warranty. No claims will be allowed for labour, transportation or other incidental costs. This warranty extends only to persons or organizations who purchased Autotaps products directly from Autotaps Limited. This warranty does not cover the life of the batteries.
