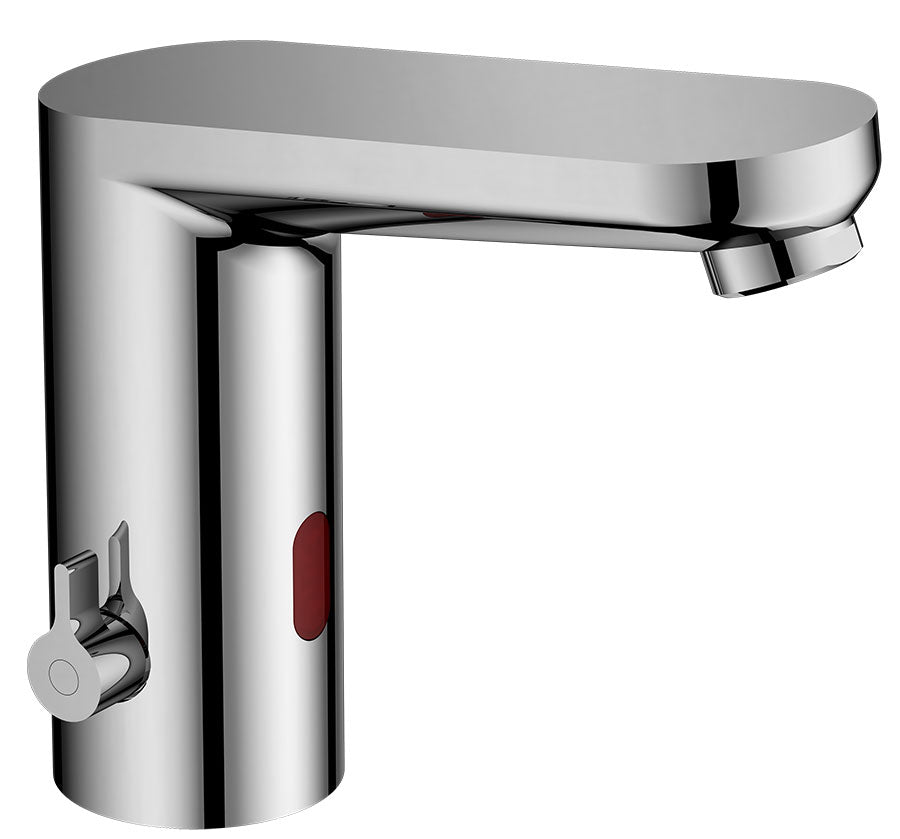

Color: Chrome
ATT-3001 Monobloc 'flat top' design electronic sensor tap with temperature control

Curve-neck design sensor tap
Ceramic mixing valve built-in
Manual temperature control lever
Hygienic and up-to 70% water conservation
Independent battery holder: 4XAA Alkaline batteries
Hands free and reliable infrared activation technology
Exquisite and stylish swan-neck design
Solid brass construction
2x flexible supply hoses

Water Feed: Double (hot & cold) water supply

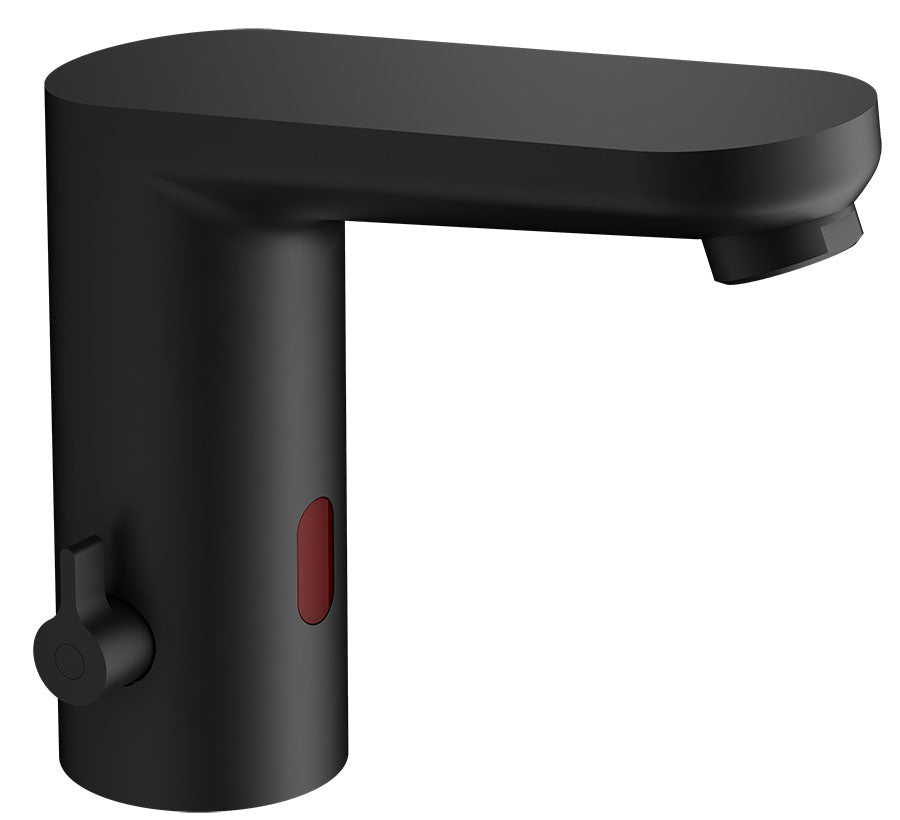

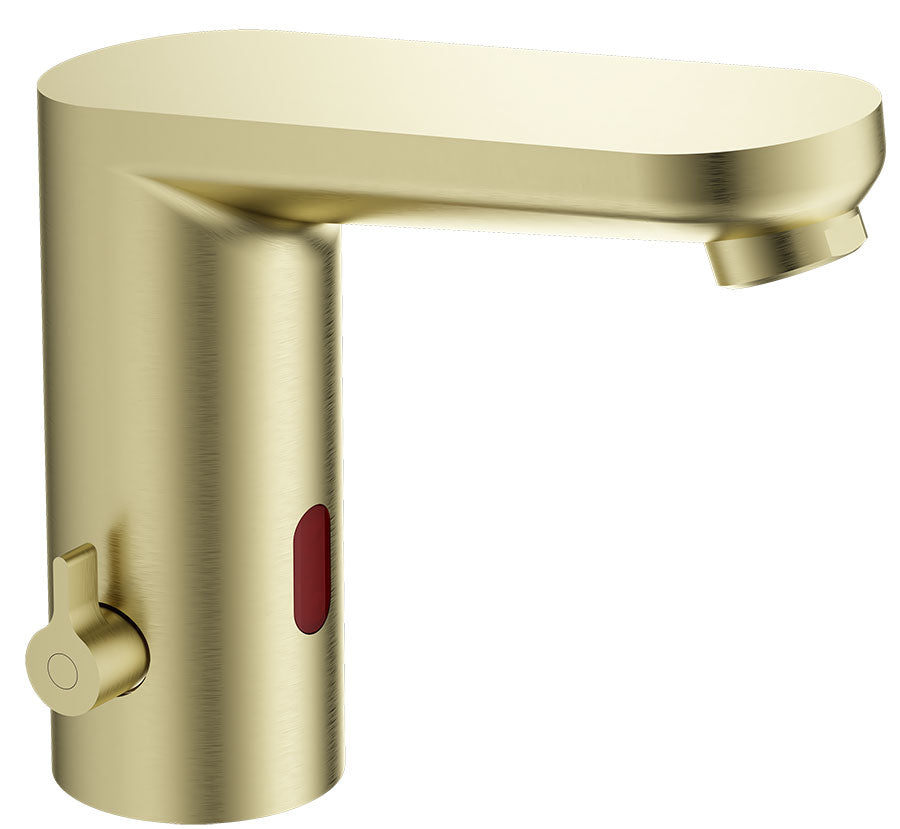

Finish: Chrome-plated/Matte Black/Brushed Nickel
Type: Deck-mounted

Power Option:
Batteries and Mains (Both power options supplied)
Supplied with AC plug

Technical Details:
Hottest temperature: 45°C
Coldest temperature: 25°C
Diameter of 'inlet' flexible hoses: G1/2”
Water pressure range: 0.7 (Min) - 8 Bar (Max)
Voltage: DC6V (or AC Transformer with 6v Output)
Power consumption: =0.3MW
Sensing distance: 10-31cm
Respond time: 1 Second
Electricity Consumption: 4xAA alkaline batteries (2 years lifespan depending on level of usage)
Silent Consumption: 0.003W
Environment Temperature: 1-45 C
Flow Rate: 5.7L/Per minute
Pipe Threading: British Standard Whitworth (BSW)

1x Sensor Tap
1x Battery Box
1x Trasformer
2x Flexible G1/2" *600mm Connection Hoses
Fittings and Screws


Gravity-fed water supply users:
You'll need at least 0.75 bar of equal pressure from hot and cold supply in order for this tap to work properly. A pressure pump/booster can be used to increase the water pressure. In summary, the pressure of 'hot' and 'cold' supply feeds must be equal for the temperature control to work efficiently.

This sensor tap can be powered by either Batteries and Mains (AC+DC) *** A transformer is supplied
This sensor tap comes with double water supply feeds
Drilling a hole?
Standard 35mm hole is fine

Autotaps Limited warrants its products (Electronic Sensor Taps) to be made of first class materials, free from defects of material or workmanship under normal use and to perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of three years from date of purchase.

During this period, Autotaps Limited will, at its option, repair or replace any part or parts which prove to be thus defective if returned to Autotaps Limited, at customer’s cost, and this shall be the sole remedy available under this warranty. No claims will be allowed for labour, transportation or other incidental costs. This warranty extends only to persons or organizations who purchased Autotaps products directly from Autotaps Limited. This warranty does not cover the life of the batteries.
