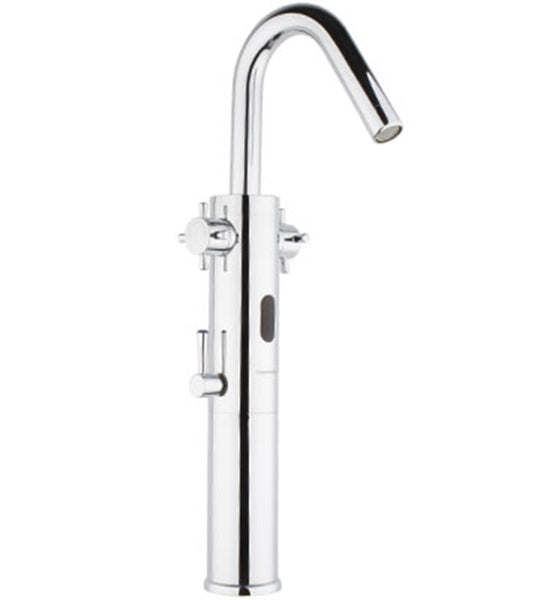

AMA Series: AMA-5025T
Tall Slant-neck design 2-in-1 manual and automatic sensor tap
Features:
Tall Slant-neck Design sensor tap
2-in-1 Integrative design

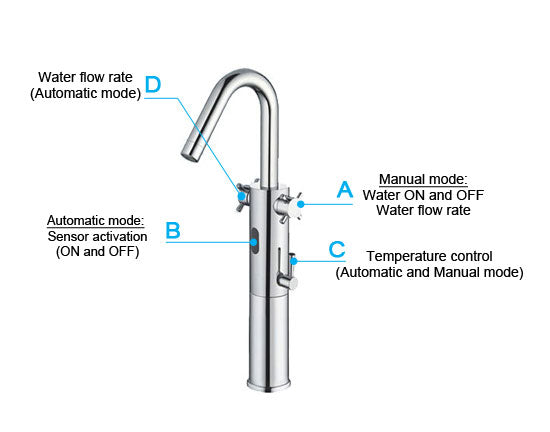

Automatic or Manual water control system
2-Pipeline Design
Double water supply feeds (Hot and Cold)
Power Options: Mains/4x AA Alkaline batteries (up-to 2yr lifespan)
External battery compartment
Low power indicator
Hands free infrared activation
Solid-brass outer-shell construction
Finish: Chrome-plated
2x Flexible supply hoses
Contents:
2-in-1 Integrative design
Automatic or Manual water control system
2-Pipeline Design
Double water supply feeds (Hot and Cold)
Power Options: Mains/4x AA Alkaline batteries (up-to 2yr lifespan)
External battery compartment
Low power indicator
Hands free infrared activation
Solid-brass outer-shell construction
Finish: Chrome-plated
2x Flexible supply hoses

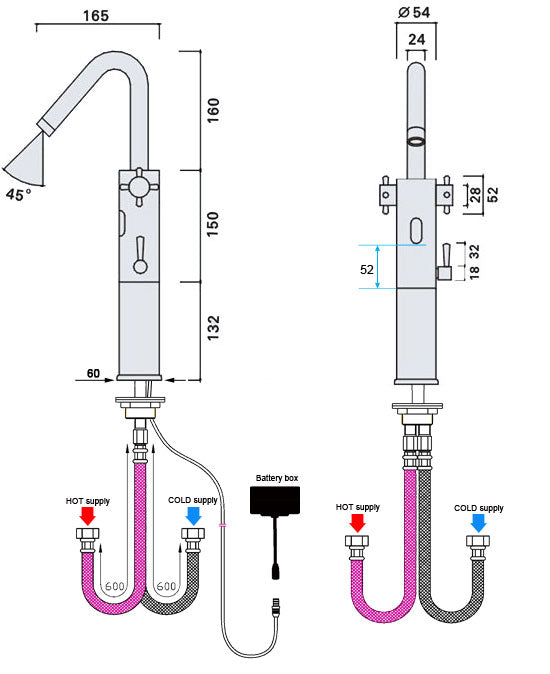

Technical Details:
Dia. of Water Inlet Pipe: G1/2" (DN15)
Operating Pressure 0.05~0.7 Mpa
Water pressure range: 0.75 (Min) - 8 Bar (Max)
Flow Rate of Manual Mode: 6L/Min (fitted with flow regulator aerator)
Flow Rate of Automatic Mode: 6L/Min (fitted with flow regulator aerator)
Max. Hot-water Temperature: 70C
Power consumption: =0.3mW
Respond time: 1 Second
Battery Power Consumption: 4x AA alkaline batteries (up-to 2-year lifespan depending on level of usage)
Silent Consumption: 0.003mW
Environment Temperature: 1-45 C
Pipe Threading: British Standard Whitworth (BSW)
Noise Class: 1
Finish: Chrome-plated
Voltage: DC6V or AC220V-240V (6V Output)
Contents:
1x Sensor Tap
1x Transformer (with 3-pin UK-type plug)
1x Battery Box
1x 1x Battery-box Bracket
2x Flexible G1/2" *500mm Connection Flexible Hoses
2x Non-return Valves With Pre-filter
1x Amphibious Screwdriver
Fittings and screws
Special Notes:
Temperature control:
This sensor tap has two pipeline design - direct hot and cold supplies.
This sensor tap has two pipeline design - direct hot and cold supplies.
Power Options
DC = Direct Current (Battery source)
AC = Alternate Current (Mains electricity supply)
DC only: The tap can run off batteries only (4 x AA batteries)
We recommend using alkaline batteries, which should be new and of the same brand.
AC only: The tap can run off Mains power supply only.
A 'step-down' transformer is supplied, type AC220V-240V (with 6V Output)
AC + DC: The tap can run off both AC (Mains) + DC (Batteries) connected at the same time.
This means, AC (Mains supply) will run the tap as normal, while the DC (batteries) ramains dormant, and acts as a backup power should the AC power fails.
TIP:
It's entirely up to you to decide which power option/combination suits your installation/usage the best.
The integrity of the tap stays the same.
AC+DC Power Option:
DC = Direct Current (Battery source)
AC = Alternate Current (Mains electricity supply)
DC only: The tap can run off batteries only (4 x AA batteries)
We recommend using alkaline batteries, which should be new and of the same brand.
AC only: The tap can run off Mains power supply only.
A 'step-down' transformer is supplied, type AC220V-240V (with 6V Output)
AC + DC: The tap can run off both AC (Mains) + DC (Batteries) connected at the same time.
This means, AC (Mains supply) will run the tap as normal, while the DC (batteries) ramains dormant, and acts as a backup power should the AC power fails.
TIP:
It's entirely up to you to decide which power option/combination suits your installation/usage the best.
The integrity of the tap stays the same.
AC+DC Power Option:
This sensor tap can be powered by either Mains or battery or both (This means that in case of a power cut, it will automatically switch to battery)
The control box for this sensor tap has a built-in transformer with detachable UK 3-pin AC cable.
Water Supply Feed:
This sensor tap only has a single water supply feed and it's designed to be supplied with pre-mixed water. Consideration should be given to safe hot water delivery and the use of an appropriate temperature reduction device i.e. thermostatic mixer valve.
This sensor tap only has a single water supply feed and it's designed to be supplied with pre-mixed water. Consideration should be given to safe hot water delivery and the use of an appropriate temperature reduction device i.e. thermostatic mixer valve.
Drilling a hole?
Standard 32mm hole will suffice.
LIMITED WARRANTY
Autotaps Limited warrants its products (Electronic Sensor Taps) to be made of first class materials, free from defects of material or workmanship under normal use and to perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of three years from date of purchase.
During this period, Autotaps Limited will, at its option, repair or replace any part or parts which prove to be thus defective if returned to Autotaps Limited, at customer’s cost, and this shall be the sole remedy available under this warranty. No claims will be allowed for labour, transportation or other incidental costs. This warranty extends only to persons or organizations who purchased Autotaps products directly from Autotaps Limited. This warranty does not cover the life of the batteries.
During this period, Autotaps Limited will, at its option, repair or replace any part or parts which prove to be thus defective if returned to Autotaps Limited, at customer’s cost, and this shall be the sole remedy available under this warranty. No claims will be allowed for labour, transportation or other incidental costs. This warranty extends only to persons or organizations who purchased Autotaps products directly from Autotaps Limited. This warranty does not cover the life of the batteries.
